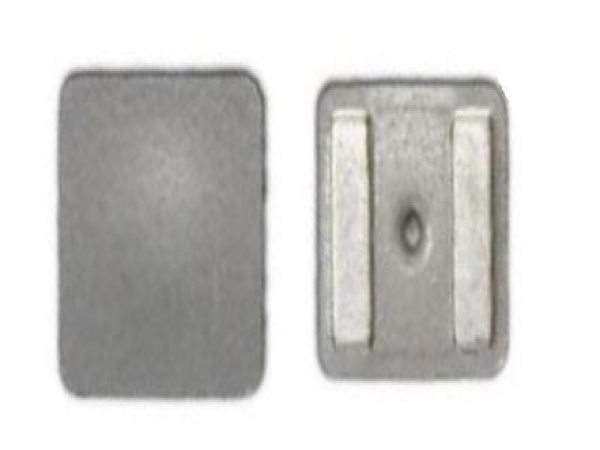

大電流フラットワイヤパワーインダクタシリーズ
1.磁性鉄合金は高い定格電流を可能にします
2.超高電流機能。
3.フラットワイヤーテクノロジーアプリケーション
4.動作温度：–40°C〜125°C
5.成形型パワーインダクタ
6.高信頼性パワーインダクタ
ファイルのダウンロード
1.磁性鉄合金は高い定格電流を可能にします
2.超高電流機能。
3.フラットワイヤーテクノロジーアプリケーション
4.動作温度：–40°C〜125°C
5.成形型パワーインダクタ
6.高信頼性パワーインダクタ
ファイルのダウンロード
1. 磁性鉄合金は高い定格電流を可能にします。
2. 超高電流機能と高過渡電流スパイクの処理
3. フラットワイヤーテクノロジーアプリケーション
4. 動作温度：–40°C〜125°C
5. CoilcraftXALシリーズにクロスします。
特徴:
MPFシリーズはフラットコイルで設計されており、一般的な丸線コイルよりも低いDC抵抗を提供できます。 製品のシリーズは、4.1mm x 4.1mm x1.9mmから7.8mmx 7.6mm x2.9mmまでのサイズで完全です。 インダクタンスの範囲は0.1μHから10μHです。 電流範囲は7.3Aから40Aです。 動作温度範囲は-40°Cから+ 125°Cです。
MPFシリーズは、デスクトップコンピュータ、ノートブックコンピュータ、ポイントオブロードコンバータ、ワークステーション、サーバー、DC-DCアプリケーション、およびその他の高出力、高密度、高周囲温度の電圧レギュレータモジュールアプリケーションでの使用に適しています。 アプリケーション。
応用:
VCRSの電源; OA機器デジタルカメラ、ノートPC、ポータブル通信機器、液晶テレビ、バッテリー駆動デバイス、SSDモジュール、スイッチおよびサーバーDC / DCコンバーターなど。
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0420H-R10M | 0.1 ± 20% | 38.0 | 18.0 | 2.42 | 100KHz/0.1V | |||
| MPF0420H-R22M | 0.22 ± 20% | 18.8 | 16.8 | 4.60 | 100KHz/0.1V | |||
| MPF0420H-R36M | 0.36 ± 20% | 15.0 | 14.5 | 6.30 | 100KHz/0.1V | |||
| MPF0420H-R40M | 0.40 ± 20% | 13.5 | 14.0 | 7.73 | 100KHz/0.1V | |||
| MPFN0420-R47M | 0.47 ± 20% | 13.0 | 12.5 | 8.58 | 100KHz/0.1V | |||
| MPFN0420-R56M | 0.56 ± 20% | 12.6 | 12.0 | 9.30 | 100KHz/0.1V | |||
| MPFN0420-R60M | 0.60 ± 20% | 12.3 | 11.7 | 9.52 | 100KHz/0.1V | |||
| MPFN0420-R72M | 0.72 ± 20% | 10.6 | 10.5 | 11.60 | 100KHz/0.1V | |||
| MPFN0420-1R0M | 1.0 ± 20% | 8.8 | 9.6 | 14.60 | 100KHz/0.1V | |||
| MPFN0420-1R2M | 1.2 ± 20% | 7.8 | 9.0 | 17.60 | 100KHz/0.1V | |||
| MPFN0420-1R5M | 1.5 ± 20% | 7.4 | 7.6 | 23.50 | 100KHz/0.1V | |||
| MPFN0420-1R8M | 1.8 ± 20% | 7.0 | 7.0 | 28.00 | 100KHz/0.1V | |||
| MPFN0420-2R2M | 2.2 ± 20% | 6.0 | 5.6 | 39.70 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0430H-R75M | 0.75 ± 20% | 9.0 | 10.0 | 10.80 | 100KHz/0.1V | |||
| MPF0430H-3R3M | 3.3 ± 20% | 5.5 | 6.6 | 28.60 | 100KHz/0.1V | |||
| MPF0430H-4R7M | 4.7 ± 20% | 4.5 | 5.1 | 44.10 | 100KHz/0.1V | |||
| MPF0430H-6R8M | 6.8 ± 20% | 3.6 | 3.9 | 74.10 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0520H-R10M | 0.1 ± 20% | 27.0 | 18.8 | 4.60 | 100KHz/0.1V | |||
| MPF0520H-R16M | 0.16 ± 20% | 27.0 | 18.8 | 4.60 | 100KHz/0.1V | |||
| MPF0520H-R33M | 0.33 ± 20% | 24.0 | 14.4 | 7.00 | 100KHz/0.1V | |||
| MPF0520H-R47M | 0.47 ± 20% | 20.0 | 14.1 | 8.10 | 100KHz/0.1V | |||
| MPF0520H-R56M | 0.56 ± 20% | 16.0 | 13.9 | 9.50 | 100KHz/0.1V | |||
| MPF0520H-R68M | 0.68 ± 20% | 14.0 | 13.4 | 10.20 | 100KHz/0.1V | |||
| MPF0520H-R80M | 0.80 ± 20% | 13.5 | 13.0 | 11.80 | 100KHz/0.1V | |||
| MPF0520H-R82M | 0.82 ± 20% | 13.0 | 12.0 | 12.70 | 100KHz/0.1V | |||
| MPF0520H-1R0M | 1.0 ± 20% | 12.8 | 10.5 | 13.80 | 100KHz/0.1V | |||
| MPF0520H-1R2M | 1.2 ± 20% | 12.2 | 9.4 | 16.30 | 100KHz/0.1V | |||
| MPF0520H-1R5M | 1.5 ± 20% | 11.7 | 8.8 | 18.70 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0530H-R15M | 0.15 ± 20% | 32.5 | 22.2 | 2.31 | 100KHz/0.1V | |||
| MPF0530H-R16M | 0.16 ± 20% | 32.0 | 22.2 | 2.33 | 100KHz/0.1V | |||
| MPF0530H-R33M | 0.33 ± 20% | 26.0 | 19.2 | 3.52 | 100KHz/0.1V | |||
| MPF0530H-R47M | 0.47 ± 20% | 24.0 | 18.4 | 4.13 | 100KHz/0.1V | |||
| MPF0530H-R56M | 0.56 ± 20% | 20.2 | 17.7 | 4.52 | 100KHz/0.1V | |||
| MPF0530H-R60M | 0.60 ± 20% | 20.0 | 17.7 | 4.52 | 100KHz/0.1V | |||
| MPF0530H-R80M | 0.80 ± 20% | 18.0 | 13.1 | 5.65 | 100KHz/0.1V | |||
| MPF0530H-R82M | 0.82 ± 20% | 17.6 | 12.9 | 5.78 | 100KHz/0.1V | |||
| MPF0530H-1R0M | 1.0 ± 20% | 14.3 | 12.2 | 7.60 | 100KHz/0.1V | |||
| MPF0530H-1R2M | 1.2 ± 20% | 13.5 | 11.0 | 9.70 | 100KHz/0.1V | |||
| MPF0530H-1R5M | 1.5 ± 20% | 12.5 | 10.5 | 11.20 | 100KHz/0.1V | |||
| MPF0530H-1R8M | 1.8 ± 20% | 11.3 | 10.1 | 12.70 | 100KHz/0.1V | |||
| MPF0530H-2R2M | 2.2 ± 20% | 9.0 | 9.7 | 14.50 | 100KHz/0.1V | |||
| MPF0530H-3R3M | 3.3 ± 20% | 8.7 | 8.1 | 23.10 | 100KHz/0.1V | |||
| MPF0530H-4R7M | 4.7 ± 20% | 7.0 | 5.9 | 36.30 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0550H-5R6M | 5.6 ± 20% | 7.2 | 7.2 | 24.2 | 100KHz/0.1V | |||
| MPF0550H-6R8M | 6.8 ± 20% | 6.6 | 6.4 | 28.6 | 100KHz/0.1V | |||
| MPF0550H-8R2M | 8.2 ± 20% | 6.1 | 6.1 | 32.5 | 100KHz/0.1V | |||
| MPF0550H-100M | 10.0 ± 20% | 5.4 | 5.0 | 43.0 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0630H-R18M | 0.18 ± 20% | 39.0 | 32.0 | 1.75 | 100KHz/0.1V | |||
| MPF0630H-R33M | 0.33 ± 20% | 30.0 | 25.0 | 2.50 | 100KHz/0.1V | |||
| MPF0630H-R56M | 0.56 ± 20% | 29.0 | 22.0 | 3.31 | 100KHz/0.1V | |||
| MPF0630H-R68M | 0.68 ± 20% | 25.0 | 20.0 | 5.17 | 100KHz/0.1V | |||
| MPF0630H-1R0M | 1.0 ± 20% | 23.0 | 18.0 | 6.05 | 100KHz/0.1V | |||
| MPF0630H-1R2M | 1.2 ± 20% | 22.0 | 16.0 | 7.40 | 100KHz/0.1V | |||
| MPF0630H-1R5M | 1.5 ± 20% | 20.0 | 15.0 | 9.13 | 100KHz/0.1V | |||
| MPF0630H-1R8M | 1.8 ± 20% | 18.2 | 14.0 | 10.20 | 100KHz/0.1V | |||
| MPF0630H-2R2M | 2.2 ± 20% | 15.9 | 10.0 | 12.20 | 100KHz/0.1V | |||
| MPF0630H-3R3M | 3.3 ± 20% | 12.2 | 8.0 | 20.80 | 100KHz/0.1V | |||
| MPF0630H-4R5M | 4.5 ± 20% | 10.0 | 7.0 | 25.30 | 100KHz/0.1V | |||
| MPF0630H-4R7M | 4.7 ± 20% | 9.0 | 6.0 | 26.00 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0650H-R82M | 0.82 ± 20% | 20.0 | 21.0 | 4.18 | 100KHz/0.1V | |||
| MPF0650H-1R0M | 1.0 ± 20% | 18.0 | 20.0 | 4.52 | 100KHz/0.1V | |||
| MPF0650H-1R2M | 1.2 ± 20% | 16.0 | 18.0 | 5.83 | 100KHz/0.1V | |||
| MPF0650H-1R5M | 1.5 ± 20% | 14.5 | 17.0 | 6.30 | 100KHz/0.1V | |||
| MPF0650H-1R8M | 1.8 ± 20% | 13.5 | 16.0 | 7.10 | 100KHz/0.1V | |||
| MPF0650H-2R2M | 2.2 ± 20% | 12.0 | 13.0 | 8.50 | 100KHz/0.1V | |||
| MPF0650H-3R3M | 3.3 ± 20% | 10.0 | 11.0 | 12.50 | 100KHz/0.1V | |||
| MPF0650H-4R3M | 4.3 ± 20% | 8.5 | 9.0 | 16.20 | 100KHz/0.1V | |||
| MPF0650H-4R7M | 4.7 ± 20% | 8.0 | 8.5 | 18.40 | 100KHz/0.1V | |||
| MPF0650H-5R6M | 5.6 ± 20% | 8.3 | 7.0 | 22.00 | 100KHz/0.1V | |||
| MPF0650H-6R8M | 6.8 ± 20% | 7.0 | 6.6 | 25.40 | 100KHz/0.1V | |||
| MPF0650H-8R2M | 8.2 ± 20% | 6.8 | 6.2 | 31.50 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0660H-4R7M | 4.7 ± 20% | 10.5 | 11.0 | 14.40 | 100KHz/0.1V | |||
| MPF0660H-5R6M | 5.6 ± 20% | 9.9 | 10.0 | 15.90 | 100KHz/0.1V | |||
| MPF0660H-6R8M | 6.8 ± 20% | 9.2 | 9.0 | 20.80 | 100KHz/0.1V | |||
| MPF0660H-8R2M | 8.2 ± 20% | 8.4 | 8.0 | 26.40 | 100KHz/0.1V | |||
| MPF0660H-100M | 10.0 ± 20% | 7.6 | 7.0 | 29.82 | 100KHz/0.1V | |||
| MPF0660H-150M | 15.0 ± 20% | 5.8 | 6.0 | 43.75 | 100KHz/0.1V | |||
| MPF0660H-220M | 22.0 ± 20% | 5.6 | 5.0 | 60.63 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0730H-1R0M | 1.0 ± 20% | 28.0 | 21.8 | 5.00 | 100KHz/0.1V | |||
| MPF0730H-1R5M | 1.5 ± 20% | 23.5 | 15.3 | 8.25 | 100KHz/0.1V | |||
| MPF0730H-2R2M | 2.2 ± 20% | 17.0 | 13.0 | 13.70 | 100KHz/0.1V | |||
| MPF0730H-2R7M | 2.7 ± 20% | 13.5 | 11.4 | 15.40 | 100KHz/0.1V | |||
| MPF0730H-3R3M | 3.3 ± 20% | 13.0 | 10.0 | 18.00 | 100KHz/0.1V | |||
| MPF0730H-4R7M | 4.7 ± 20% | 12.2 | 9.0 | 26.70 | 100KHz/0.1V | |||
| MPF0730H-5R6M | 5.6 ± 20% | 11.5 | 7.3 | 33.20 | 100KHz/0.1V | |||
| MPF0730H-6R8M | 6.8 ± 20% | 11.0 | 6.8 | 42.50 | 100KHz/0.1V | |||
| MPF0730H-8R2M | 8.2 ± 20% | 9.0 | 5.9 | 48.73 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF0770H-3R3M | 3.3 ± 20% | 19.4 | 15.1 | 9.42 | 100KHz/0.1V | |||
| MPF0770H-4R7M | 4.7 ± 20% | 15.2 | 13.6 | 14.26 | 100KHz/0.1V | |||
| MPF0770H-6R8M | 6.8 ± 20% | 12.8 | 9.2 | 19.60 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF1508H-2R0M | 1.0 ± 20% | 52.0 | 40.0 | 2.20 | 100KHz/0.1V | |||
| MPF1508H-2R2M | 1.5 ± 20% | 49.0 | 37.0 | 2.50 | 100KHz/0.1V | |||
| MPF1508H-3R0M | 2.2 ± 20% | 41.0 | 34.5 | 3.00 | 100KHz/0.1V | |||
| MPF1508H-4R2M | 2.7 ± 20% | 33.0 | 27.0 | 4.70 | 100KHz/0.1V | |||
| MPF1508H-4R7M | 3.3 ± 20% | 32.0 | 26.5 | 5.20 | 100KHz/0.1V | |||
| MPF1508H-5R3M | 4.7 ± 20% | 31.0 | 26.0 | 5.30 | 100KHz/0.1V | |||
| MPF1508H-6R2M | 5.6 ± 20% | 31.0 | 23.0 | 6.50 | 100KHz/0.1V | |||
| MPF1508H-7R2M | 6.8 ± 20% | 29.0 | 21.0 | 7.20 | 100KHz/0.1V | |||
| MPF1508H-8R2M | 8.2 ± 20% | 25.0 | 19.0 | 7.90 | 100KHz/0.1V | |||
Electrical Characteristics
| Part No. | Inductance | Isat (A) | Irms (A) | DCR (mΩ) | Test Frequuency | |||
| (uH) | Typ | Typ | Max | |||||
| MPF1510H-4R7M | 4.7 ± 20% | 39.0 | 29.0 | 3.80 | 100KHz/0.1V | |||
| MPF1510H-5R6M | 5.6 ± 20% | 37.0 | 28.0 | 4.20 | 100KHz/0.1V | |||
| MPF1510H-6R8M | 6.8 ± 20% | 36.0 | 26.0 | 4.60 | 100KHz/0.1V | |||
| MPF1510H-8R2M | 8.2 ± 20% | 30.0 | 24.0 | 7.20 | 100KHz/0.1V | |||
| MPF1510H-100M | 10.0 ± 20% | 26.5 | 22.0 | 8.60 | 100KHz/0.1V | |||
| MPF1510H-150M | 15.0 ± 20% | 23.0 | 18.0 | 11.50 | 100KHz/0.1V | |||
| MPF1510H-220M | 22.0 ± 20% | 18.7 | 14.0 | 15.80 | 100KHz/0.1V | |||
| MPF1510H-330M | 33.0 ± 20% | 16.7 | 12.0 | 20.00 | 100KHz/0.1V | |||
詳細については、「ファイルのダウンロード」をクリックしてください。
