Erocore CMB0806N2H is cross to TDK MCZ0806AH which has EMC suppression by achieving wide frequency range differential mode transmission while ensuring common mode impedance with virtually no affect on the high-speed differential transmission line signal.
Application:
Electronic euipment high-speed interface(LVDS, USB2.0, MHL)
Mobile phones, PCs, DSCs, portable game machines, etc

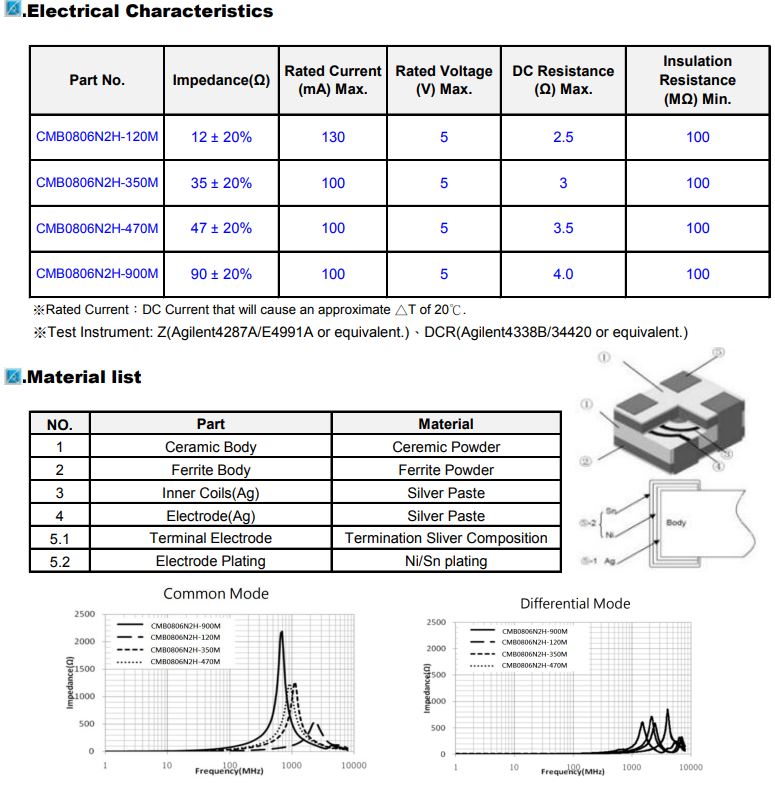

| Part Number | Impedance(Ω) | Rated Current (mA) Max. |
Rated Voltage (V) Max. |
DC Resistance (Ω) Max. |
Insulation Resistance (MΩ) Min. |
| CMB0806N2H-120M | 12 ± 20% | 130 | 5 | 2.5 | 100 |
| CMB0806N2H-350M | 35 ± 20% | 100 | 5 | 3.0 | 100 |
| CMB0806N2H-470M | 47 ± 20% | 100 | 5 | 3.5 | 100 |
| CMB0806N2H-900M | 90 ± 20% | 100 | 5 | 4.0 | 100 |
