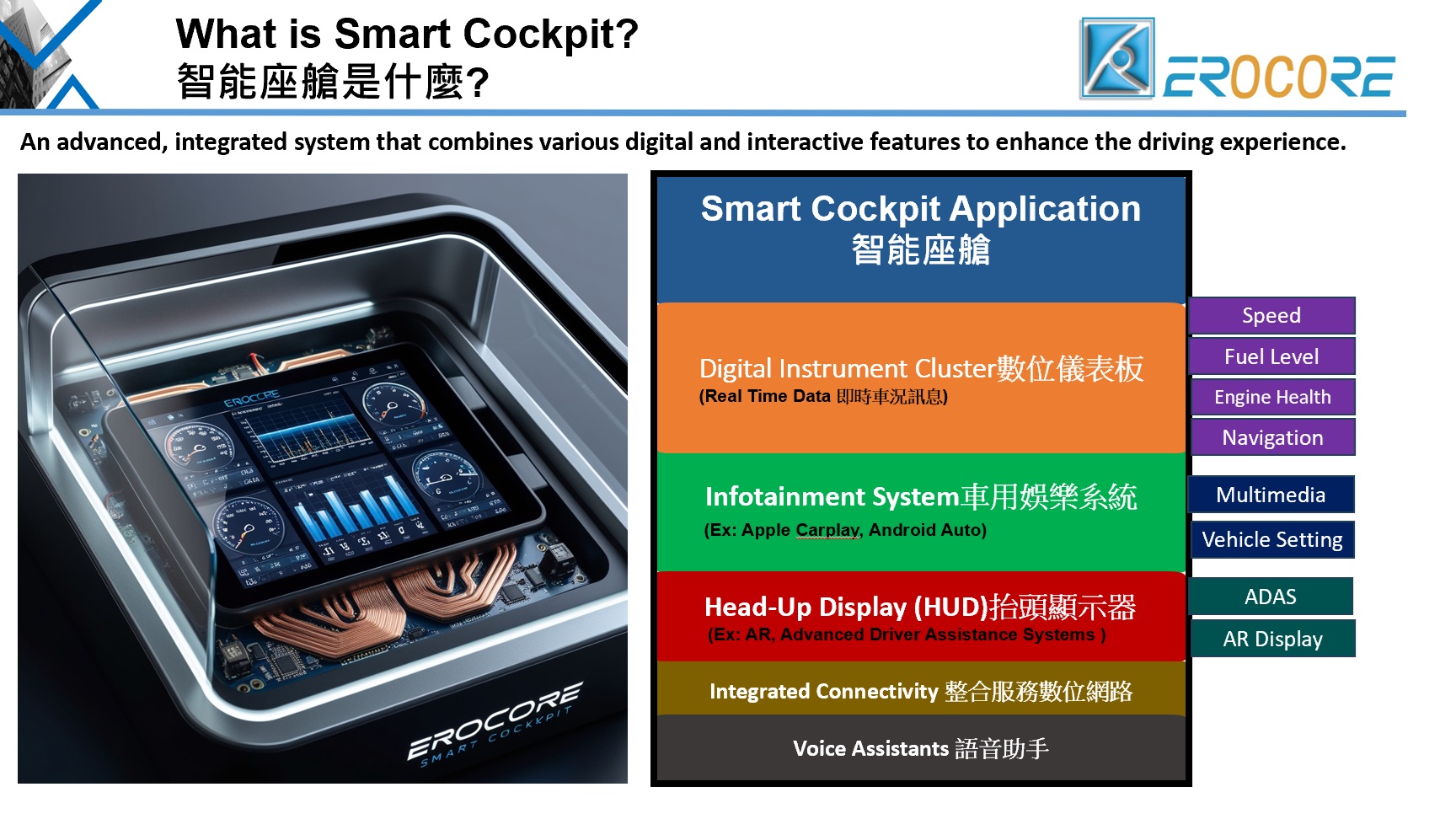

The advancement of automotive technology has revolutionized not just how we drive but the entire vehicle experience. Central to this innovation is the smart cockpit, which represents cutting-edge technology and redefines driving through the integration of essential systems such as Heads-Up Displays (HUD), digital dashboards, and in-vehicle infotainment (IVI) platforms, Advanced Driver Assistance System(ADAS), etc . This discussion explores the smart cockpit's pivotal role in modern car design, highlighting how it fosters an intuitive and distraction-free driving experience.
Erocore (聯磁) offers a comprehensive catalog of automotive products for smart cockpit applications.
1. MPSZ Series (High Current Molding Type Power Inductor)
https://www.core.com.tw/Product/Automotive-Power-Inductor-Series
2. PCML Series (SMD Common Mode Filter)
| Part No. |
Common Mode Impedance |
IDC | DCR | Test Frequuency | |||
|
(Ω)Min |
(Ω)Typ | (mA)Max | (Ω)Max | ||||
| PCML3225AC-110 | 300 | 550 | 300 | 0.4 | 10MHz/100mV | ||
| PCML3225AC-220 | 500 | 1100 | 250 | 0.5 | 10MHz/100mV | ||
| PCML3225AC-501 | 1000 | 2600 | 200 | 0.7 | 10MHz/100mV | ||
| PCML3225AC-101 | 2200 | 5100 | 150 |
1.5 | 10MHz/100mV | ||
| PCML3225AC-201 | 7000 | 7500 | 70 |
5.5 | 10MHz/100mV | ||
https://www.core.com.tw/Product/Common-Mode-Choke-Series-AEC-Q200
