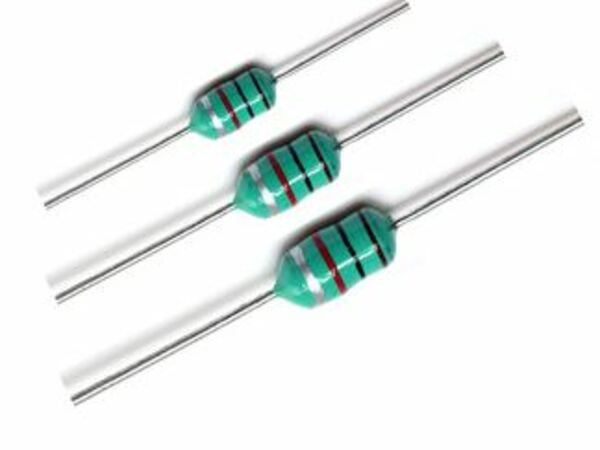

AL

型号:AL

AL

1. 轴向固定电感器
2. 最高感量可达68mH
3. 高Q值与SRFs.
4. 通孔轴向电感
5. 射频电感和功率扼流圈,线圈
downloadFile download

1. Coating epoxy resin that ensures the humidity resistance to be long life.
2. Contribute to be high Q and self-resonant frequencies.
3. Epoxy resin coating makes it high reliability.
4. RF Coils, Choke Coils, Peak Coils.

Features:

Erocore AL Series fixed inductor utilizes the latest winding technology with special core material, sturdy construction, outer layer of epoxy resin processing, high Q value and self-resonance frequency, wide inductance range, high reliability, and low price.

AL series is ideal for consumer electronics such as digital set-top boxes (DVB), digital video disc players (DVD), video cassette recorders (VCR), television (TV), computers, audio equipment, mobile communications, telephone, and various general-purpose electronic applications.

Erocore highly efficient automated production processes offer a full range of high-quality inductors products suitable for automatic plug-in operation. The (TCAL) provides 0204,0307,0410, and 0510 size varieties of different forming, such as Normal & Short Form, F Forming, U Forming, Pana Forming, and bulk products to meet the needs of a variety of manufacturing methods.

Application:

Digital Set-top Boxes (DVB), Digital Video Disc Players (DVD), Video Cassette Recorders (VCR), Television (TV), Computers, Audio Equipment, Mobile Communications, Telephone, and various General-Purpose Electronic Applications.

Please click "File download" for more information.
