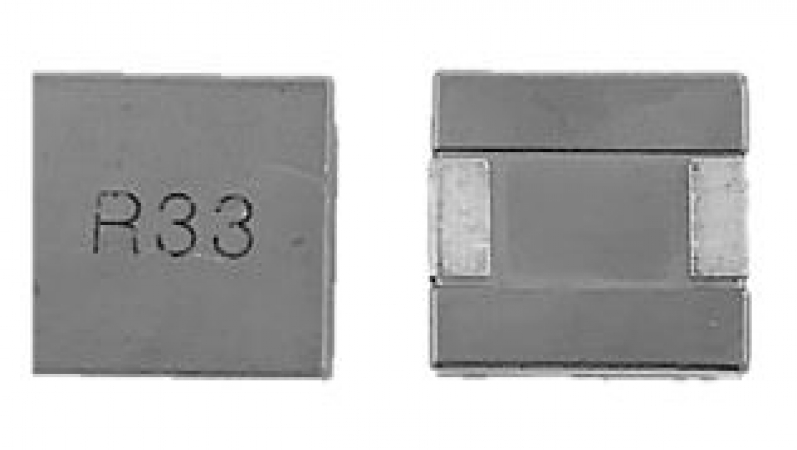

High Current Flat Wire Power Inductor
1.High saturation current up to 78A
2.Extremely low DCR with tolerance 10%
3.Operating temperature:-40°C to +125 °C

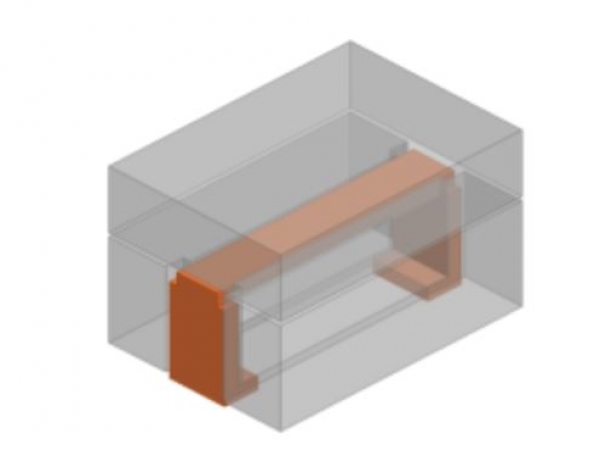

4.Flat Wire Construction
5.Power Line Application
檔案下載

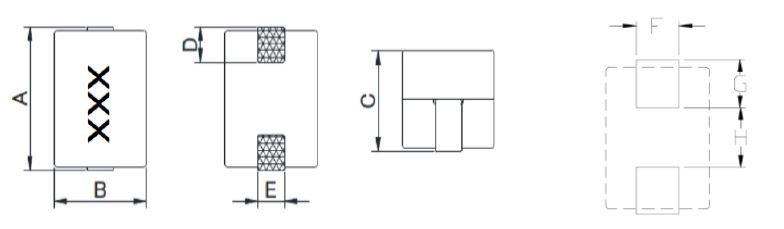

Dimensions in mm
| Part No. | A | B | C | D | E | G | H | I |
| HCIB100807 | 10.2±0.30 | 7.7±0.30 | 6.8 ±0.30 | 2.54 Typ. | 2.24 Typ. | 2.5 Typ. | 3.3 Ref. | 4.7 Ref. |
| HCIB100808 | 10.2±0.30 | 7.7±0.30 | 7.2 ±0.30 | 2.54 Typ. | 2.24 Typ. | 2.5 Typ. | 3.3 Ref. | 4.7 Ref. |
| Part No. | Inductance | Irms (A) | Isat (A) | DCR (mΩ) | Test Frequuency | |||
| (nH) | Typ. | Typ. | ||||||
| HCIB100807TS-R15M | 150±20% | 56 | 70 | 0.29±10% | 100KHz/1V | |||
| HCIB100807TS-R18M | 180±20% | 56 | 55 | 0.29±10% | 100KHz/1V | |||
| HCIB100807TS-R22M | 220±20% | 56 | 50 | 0.29±10% | 100KHz/1V | |||
| HCIB100807TS-R30M | 300±20% | 56 | 32 | 0.29±10% | 100KHz/1V | |||
| HCIB100807TS-R40M | 400±20% | 56 | 26 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R12M | 120±20% | 56 | 78 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R15M | 150±20% | 56 | 72 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R17M | 170±20% | 56 | 62 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R20M | 200±20% | 56 | 48 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R23M | 230±20% | 56 | 43 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R27M | 270±20% | 56 | 37 | 0.29±10% | 100KHz/1V | |||
| HCIB100808TS-R30M | 300±20% | 56 | 32 | 0.29±10% | 100KHz/1V | |||
